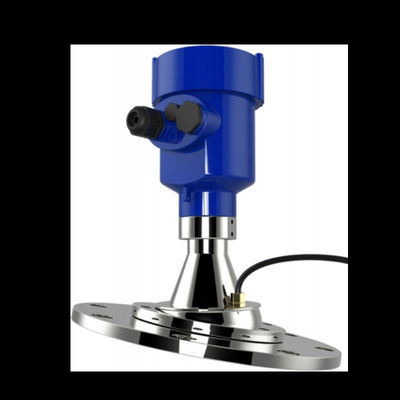

Customizable Solid-Liquid Detection 80G Radar Level Gauge for Industrial Applications
| Place of Origin | China |
|---|---|
| Brand Name | UNIVO |
| Model Number | UBLG-80D |
| Price | $505.00/sets 1-5 sets |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Grade | Industrial | Warranty | 2 Years |
|---|---|---|---|
| Customized Support | OEM, ODM | Material | - |
| Mode | - | Range | 0.3m~150m |
| Type | Radar Level Gauge |

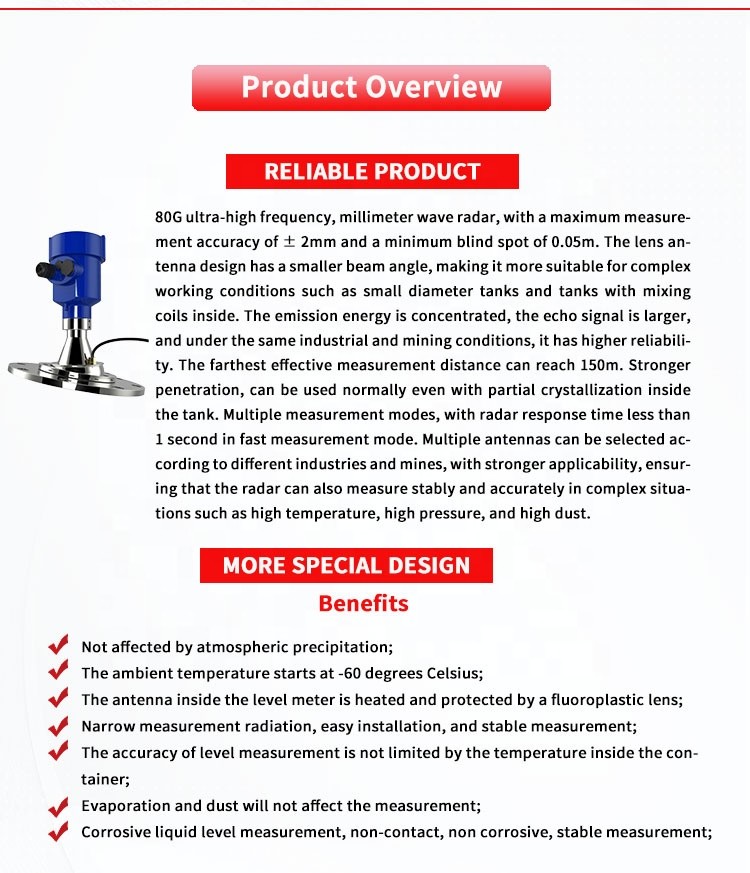

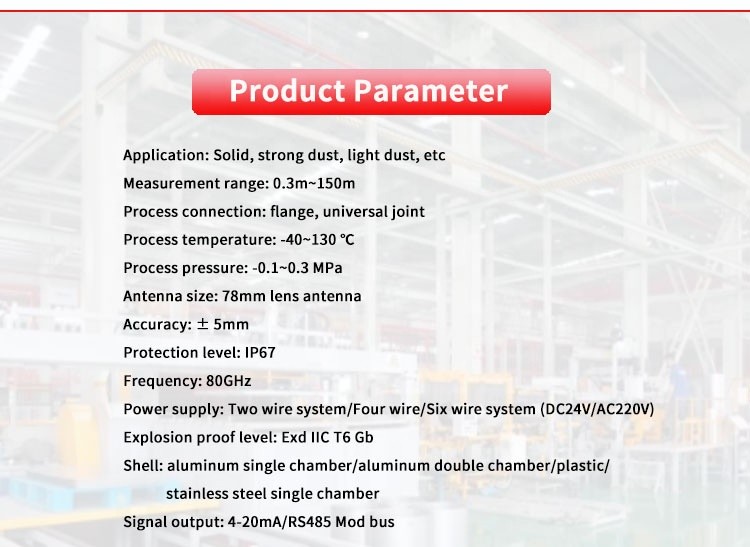

Product Description
Product Description
Solid measurement: powder, particles, blocks (plastic particles with low dielectric constant) Liquid measurement: liquid level of reaction kettle, big steam, foam products, crystallization products, ultra-high temperature products, ultra-high pressure products, sanitary products
Process Connection | Flange/material 304 stainless steel, PP |
Antenna profile | PTFE |
Shell | Cast aluminum/stainless steel/plastic ABS |
Sealing between shell and shell cover | silicon rubber |
Shell Window | polycarbonate |
Grounding terminal | Stainless steel |
Power supply voltage | ||||
Four wire system | (12-24) VDC | |||
Power consumption max80mADC24V/2W | ||||
Allow ripple<100Hz Us | ||||
(100-100K) Hz Uss<10mV | ||||
Dual chamber housing | (198-242) V AC four wire system | |||
110V AC four wire system | ||||
Cable parameters | ||||
Cable entry/plug | 1 M 20xl.5 cable entry | |||
1 blind plug M20xl. 5 | ||||
Wiring terminals | Wire cross-section 2.5mm ² | |||
Output parameters | ||||
output signal | (4-20) mA/RS 485 Modbus | |||
resolving power | 1mm | |||
Fault signal | The current output remains unchanged; 20. 5mA; 22mA; 3.9mA | |||
Integral time | (0-20) s, adjustable | |||
Blind spot | 0.08m/0.2m/0.3m | |||
Maximum measurement distance | 150 meters | |||
Measurement interval | Approximately 1 second (depending on parameter settings) | |||
Adjust time | Approximately 1 second (depending on parameter settings) | |||
Working storage and transportation temperature | (-40~80) ℃ | |||
relative humidity | ˂ 95% | |||
pressure | Max. 2.5MPa | |||
Seismic resistance | Mechanical vibration 10m/s ² , (10-150) Hz | |||
Why Choose Us

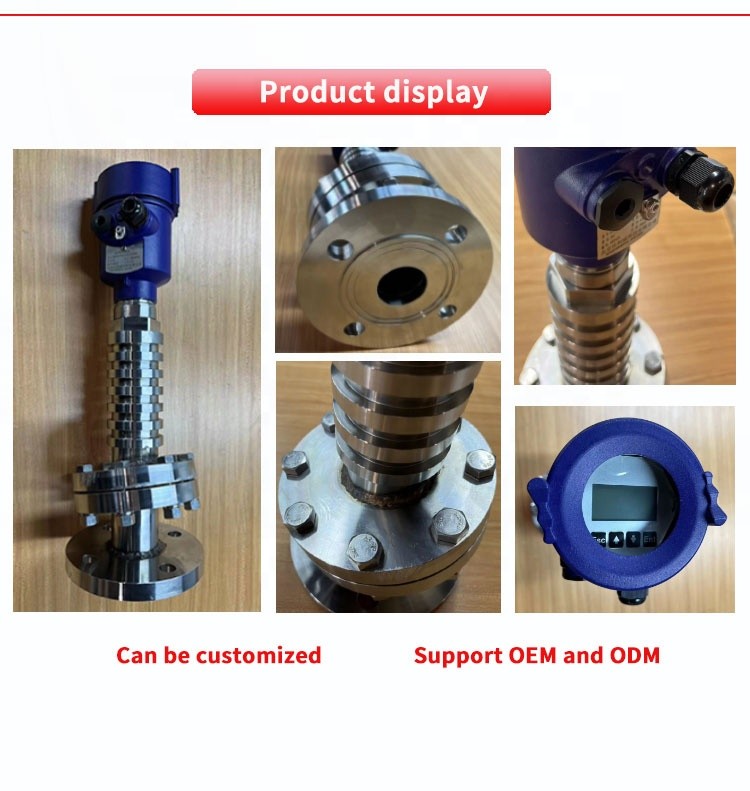

Details Images
Company Profile
Product packaging
FAQ
Q1. What are your packaging conditions? Answer: Usually, brown cardboard boxes are packaged with bubble bags inside to wrap the product. Q2. How long is your quotation valid? Answer: Our quotation is valid for 30 days. Q3. How is your delivery time? Answer: General standard type: 7-15 working days after confirming the order based on the quantity; Non standard types require communication and confirmation with us. Q4. What is your minimum order quantity? Answer: According to different product types, the cost varies and the minimum order quantity also varies. Please contact us for confirmation. Q5. How do you ensure good product quality? Answer: We have a complete quality control system; All of our products undergo a comprehensive inspection by the quality department before being shipped to customers. Q6. Can you produce based on samples? Answer: Yes, we can produce according to your samples or technical drawings. Q7. Can you accept OEM brands? Answer: Yes, we can accept OEM brands. Q8. How long is the warranty period for your product? Answer: Lifetime maintenance, 24 months of non human damage (calculated from the time of receipt), with free replacement if there are quality issues (damage caused by human factors, overload use, etc. are not within the warranty scope); Only material fees will be charged beyond the warranty period. Accessories and gifts are not covered by the warranty. Q9. How to deliver? Answer: For your convenience, we can send goods through DHL, TNT, UPS, SF, EMS, etc. for prepaid shipping, or use your own courier account to collect shipping fees. Q10. Can I take the sample? Answer: You can contact us to help you get the samples as soon as possible.
Purchase guide To recommend you the most suitable sensor, please tell us below information. 1. Working temperature: -40~+125 °C ? 2. Test range? 3. Output: 4-20mA , RS485 or others? 4. Screw: G1/4, 1/4NPT, R1/4, M20*1.5? 5. Electrical connection: DIN43650, Packard, Direct lead? 6. Order quantity: ?
