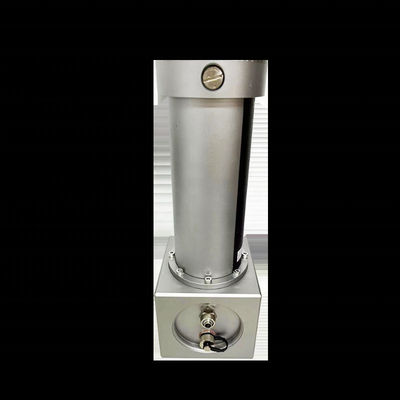

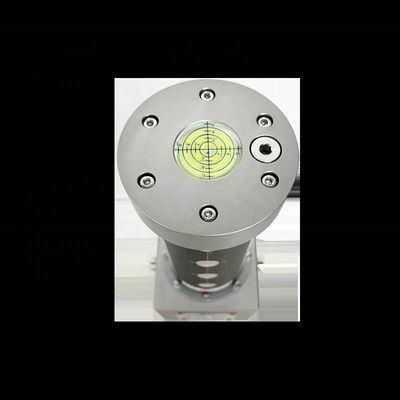

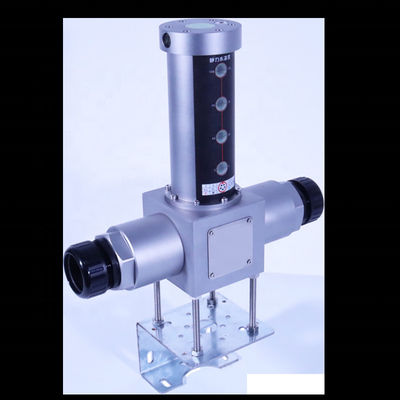

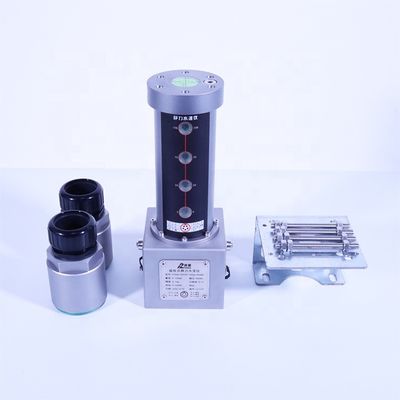

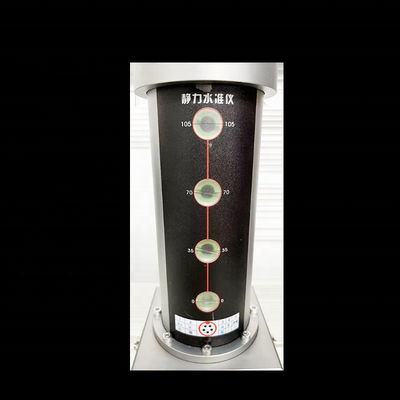

Evaluation Bridge Static Level High Precision Instruments With UBEL-SL01Y 4G Monitoring System
| Place of Origin | Beijing, China |
|---|---|
| Brand Name | UNIVO |
| Model Number | UBEL-SL01 |
| Price | $307.00/sets 1-9 sets |
| Packaging Details | Brown cardboard boxes are packaged with bubble bags inside to wrap the product.Choose a safe, fast, and reasonably priced route and courier company based on the receiving location. The interior of the cardboard box is packaged in bubble bags. |
| Supply Ability | 1000 Piece/Pieces per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Grade | Industrial | Warranty | 1 Year |
|---|---|---|---|
| Customized Support | OEM, ODM | Range | 0-100mm; 200mm; 300mm; |
| Power | 24VDC (9-30VDC) | Comprehensive Accuracy | ± 0.1mm |
| Protection Grade | IP67 | ||
| Highlight | Evaluation Bridge High Precision Instruments,4G High Precision Instruments,UBEL-SL01Y High Precision Instruments |
||
Product Description
Monitoring of settlement of railway subgrade and subway support wall; Monitoring of settlement of mountains and buildings in the upper part of the tunnel; Monitoring of settlement of highway subgrade, slopes, and bridge piers; Settlement monitoring of foundation pits, nuclear power plants, and hydropower stations; Bridge, foundation, and tunnel safety management; Evaluate the signs and trends of structural performance degradation; Monitoring of foundation settlement of dams, water conservancy hubs, and high-rise buildings; Real time evaluation of bridge working status and prediction of bridge functional changes; Measure the sinking status of the support, changes in expansion joints, and displacement of the anchor plug body; Master the environmental, traffic, structural stress, and deformation parameters of the monitored object;
| Range: | 0-100mm; 200mm; 300mm; |
| Power supply voltage: | 24VDC (9-30VDC) |
| Comprehensive accuracy: | ± 0.1mm; |
| Nonlinear: | ≤ 0.05% FS |
| Repeatability: | ≤ 0.002% FS (minimum ± 1) μ M) |
| Output signal: | RS485 RTU |
| Environmental temperature: | -40~70℃ |
| Lifetime: | ≥ 1 million times |
| Update frequency: | 10Hz |
| Working current: | <50mA (varies with the range) |
| Insulation impedance: | ≥ 1000 M Ω/100VDC |
| Humidity/Dew Point: | Humidity of 90%, no condensation allowed |
| Temperature coefficient: | <30pp/C |
| Electrical connection: | M12 waterproof electrical connector |
| Process connection: | 10mm liquid pipe quick connector |
| Protection level: | IP67 |
| Connection cable: | Five core shielded cable, standard length: 1 meter |
| External dimensions: | 100mm * 100 mm* 277mm |
| Float specification: | 304 stainless steel material, 52 diameter large float ball |
| Applicable medium: | Random liquids such as water or antifreeze (depending on the ambient temperature of the application installation area, ensure that the liquid does not freeze) |

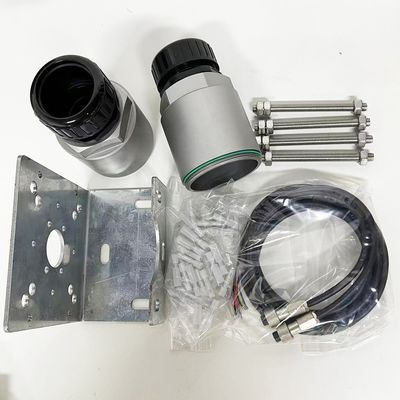

| On demand matching: | Provide outdoor waterproof connecting pipes as needed; Antifreeze and liquid pipes, as well as RS485 communication cables; Equipped with wireless 4G acquisition module PT500-990 and third-party monitoring platform as needed; Supporting local monitoring upper computer software as needed; |
FAQ
Q1. What are your packaging conditions? Answer: Usually, brown cardboard boxes are packaged with bubble bags inside to wrap the product. Q2. How long is your quotation valid? Answer: Our quotation is valid for 30 days. Q3. How is your delivery time? Answer: General standard type: 7-15 working days after confirming the order based on the quantity; Non standard types require communication and confirmation with us. Q4. What is your minimum order quantity? Answer: According to different product types, the cost varies and the minimum order quantity also varies. Please contact us for confirmation. Q5. How do you ensure good product quality? Answer: We have a complete quality control system; All of our products undergo a comprehensive inspection by the quality department before being shipped to customers. Q6. Can you produce based on samples? Answer: Yes, we can produce according to your samples or technical drawings. Q7. Can you accept OEM brands? Answer: Yes, we can accept OEM brands. Q8. How long is the warranty period for your product? Answer: Lifetime maintenance, 24 months of non human damage (calculated from the time of receipt), with free replacement if there are quality issues (damage caused by human factors, overload use, etc. are not within the warranty scope); Only material fees will be charged beyond the warranty period. Accessories and gifts are not covered by the warranty. Q9. How to deliver? Answer: For your convenience, we can send goods through DHL, TNT, UPS, SF, EMS, etc. for prepaid shipping, or use your own courier account to collect shipping fees. Q10. Can I take the sample? Answer: You can contact us to help you get the samples as soon as possible. Purchase guide To recommend you the most suitable sensor, please tell us below information. 1. Working temperature: -40~+125 °C ? 2. Test range? 3. Output: 4-20mA , RS485 or others? 4. Screw: G1/4, 1/4NPT, R1/4, M20*1.5? 5. Electrical connection: DIN43650, Packard, Direct lead? 6. Order quantity: ?
