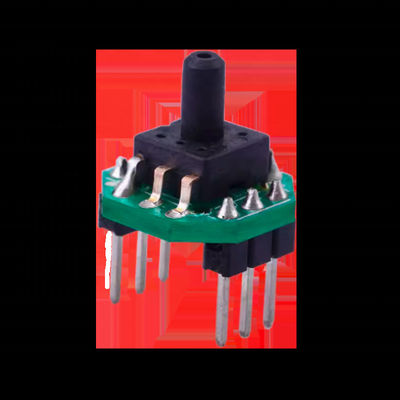

IIC Pressure Sensor Module For Positive And Negative Pressure 100kPa 1500kPa Range
| Place of Origin | Beijing, China |
|---|---|
| Brand Name | UNIVO |
| Model Number | UBPM-01 |
| Price | $5.30 - $7.40/sets |
| Packaging Details | Brown cardboard boxes are packaged with bubble bags inside to wrap the product. |
| Supply Ability | 1000 Piece/Pieces per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Warranty | 1 Year | Customized Support | OEM, ODM |
|---|---|---|---|
| Range | -100kPa ~ 0~1kPa ~1500kPa | Type | Pressure Sensor |
| Current Consumption | 5uA (one Measurement) | Power Supply | 2.5V~5.5V |
| Highlight | Negative pressure sensor,positive pressure sensor,IIC Pressure Sensor |
||
Product Description
Products Description
Electronic blood pressure monitors, ventilators, oxygen
concentrators, monitors and other medical fields;
concentrators, monitors and other medical fields;
Atomizer, spray, negative pressure sensor and other consumer
electronics fields;
electronics fields;
In the field of sports and fitness equipment such as massagers,
massage chairs, and air cushion beds;
massage chairs, and air cushion beds;
In the fields of water heaters, oxygen water machines, beer
machines, coffee machines, air pumps, vacuum pumps, pressure
instruments, etc;
machines, coffee machines, air pumps, vacuum pumps, pressure
instruments, etc;
Product Paramenters
| Project | Numerical value | Unit | ||
| Power supply | 5±0.25 | V DC | ||
| Reference temperature | 25 | °C | ||
| Accuracy* | 2 | %Span | ||
| Response time | 2.5ms@OSR_P=1024X | Ms | ||
| SDA/SCL pull-up resistor | 4.7 | Kohm | ||
| ESD HBM | 4000 | V | ||
| Overload pressure | 2 | Rated | ||
| Compensation temperature | 0~60 | °C | ||
| Measure medium temperature | -10~85 | °C | ||
| Storage temperature | -40~150 | °C | ||
| Accuracy refers to the comprehensive error, which is composed of the linearity, repeatability, hysteresis, and thermal drift errors of pressure. The pressure range and precision vary. Please consult customer service for more details. | | | ||
| | | | ||
| | | | ||
| parameter | Minimum value | Typical value | Maximum value | Unit | Remarks | ||
| Power supply voltage | 2.5 | | 5.5 | V | | ||
| working temperature | -40 | | 150 | °C | | ||
| Standby current | | 100 | | nA | | ||
| LDO output | 1.62 | 1.8 | 1.98 | V | 'regulator_sel'= 0 | ||
| | 3.24 | 3.6 | 3.96 | V | | ||
| PSRR | | 60 | | dB | 'regulator_sel'= 1 | ||
| resolving power | | 24 | | Bits | | ||
| Output data resolution | 24 | | | Bits | LSB=(1/2^23)*VEXT ('raw_data_on'=1) | ||
| Input common mode signal suppression ratio | 80 | 110 | | | | ||
| Built in temperature sensor accuracy | | | ±0.5 | °C | @25°C | ||
| | | | ±1 | °C | -40 to 85°C | ||
| Output data resolution | 16 | | | Bit | LSB =(1/256)°C | ||
| Clock pulse frequency | | | 400 | khz | I2C communication | ||

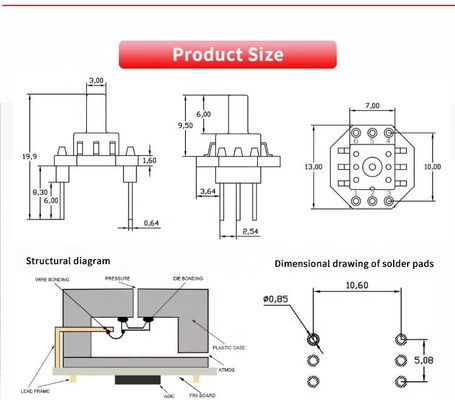

Electrical connections
| 1 | 2 | 3 | 4 | 5 | 6 | |||||
| SCL | NC | GND | VDD | SDA | NC | |||||
| Attention: 1. Ensure anti-static protection during the welding process 2. Overload voltage (6.5Vdc) or current (5mA) is highly likely to burn out the circuit chip. 3. Please add a 0.1uf capacitor between VDD and GND | | | | | | |||||

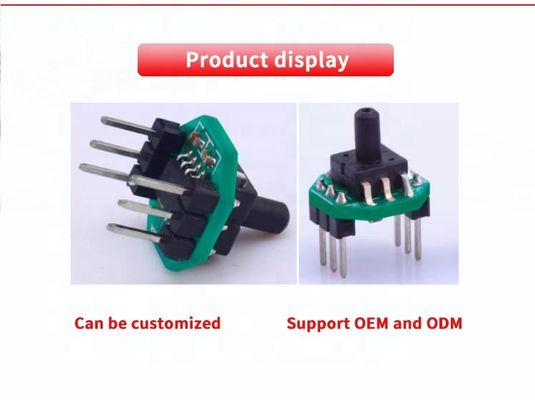

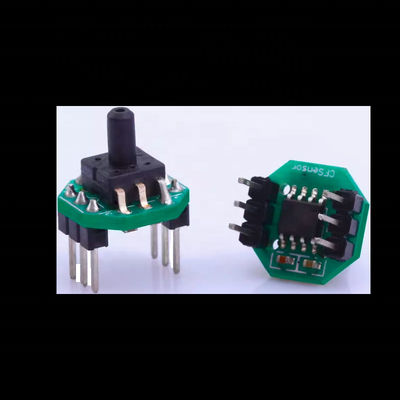

Details Images
Company Profile
Why Choose Us
Product packaging
FAQ
Q1. What are your packaging conditions? Answer: Usually, brown cardboard boxes are packaged with bubble bags inside to wrap the product. Q2. How long is your quotation valid? Answer: Our quotation is valid for 30 days. Q3. How is your delivery time? Answer: General standard type: 7-15 working days after confirming the order based on the quantity; Non standard types require communication and confirmation with us. Q4. What is your minimum order quantity? Answer: According to different product types, the cost varies and the minimum order quantity also varies. Please contact us for confirmation. Q5. How do you ensure good product quality? Answer: We have a complete quality control system; All of our products undergo a comprehensive inspection by the quality department before being shipped to customers. Q6. Can you produce based on samples? Answer: Yes, we can produce according to your samples or technical drawings. Q7. Can you accept OEM brands? Answer: Yes, we can accept OEM brands. Q8. How long is the warranty period for your product? Answer: Lifetime maintenance, 24 months of non human damage (calculated from the time of receipt), with free replacement if there are quality issues (damage caused by human factors, overload use, etc. are not within the warranty scope); Only material fees will be charged beyond the warranty period. Accessories and gifts are not covered by the warranty. Q9. How to deliver? Answer: For your convenience, we can send goods through DHL, TNT, UPS, SF, EMS, etc. for prepaid shipping, or use your own courier account to collect shipping fees. Q10. Can I take the sample? Answer: You can contact us to help you get the samples as soon as possible. Purchase guide To recommend you the most suitable sensor, please tell us below information. 1. Working temperature: -40~+125 °C ? 2. Test range? 3. Output: 4-20mA , RS485 or others? 4. Screw: G1/4, 1/4NPT, R1/4, M20*1.5? 5. Electrical connection: DIN43650, Packard, Direct lead? 6. Order quantity: ?
